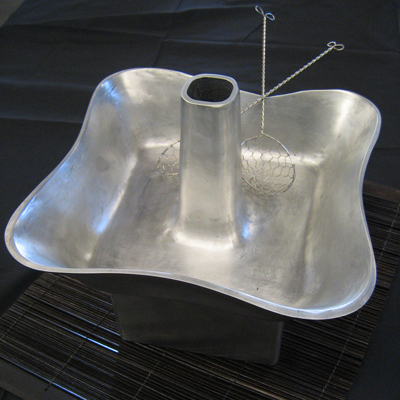

      <td width="530" id="title" align="left">Chinese Steamboat</td>
      <td width="335" rowspan="3" align="right"><img src="images/works/steamboat/Steamboat.jpg" width="325" height="325" alt="Steamboat" /></td>
      <td width="5" rowspan="3">&nbsp;</td>
    </tr>
    <tr>
      <td id="caption" align="left">Aluminum, sand-cast</td>
    </tr>
    <tr>
      <td id="cell1" align="left"><p>This piece is a modern take on a traditional Chinese hot pot, called a <em>Steamboat</em> in Singpore, where it is a popular fondue-like dish often served at Chinese New Year.  As Singaporean and Chinese culture are strong elements of my heritage and identity, I wanted to design an updated version that still honored the classic form.</p>
<p>Traditional Steamboats are charcoal-fueled, which can be both inconvenient and potentially unsafe for indoor use. Newer Steamboats, fueled by propane,  aren't much more than a big pot over a burner - casting aside all  elegance and ritual in favor of pure functionality.
<p> Given the iconic status and significance in Singaporean culture, this piece seeks to blend the modern and the traditional - for example, using clean-burning gas instead of hot coals, while  retaining the chimney that is central to the gestalt of the classic form.
<p>This piece was exhibited in the show <em>Design Unassigned</em> at the Thomas Welton Stanford Art Gallery in April 2010.</td>
    </tr>
</table>
<br />
<table id="table1" width="900" border="0" cellspacing="0" cellpadding="0">
  <tr>
    <td width="30" rowspan="8">&nbsp;</td>
    <td width="288"><img src="images/works/steamboat/Render-thumb.jpg" width="200" height="200" alt="Rendering" /></td>
    <td width="289"><img src="images/works/steamboat/RapidPrototype-thumb.jpg" width="200" height="200" alt="Rapid Prototype" /></td>
    <td width="288"><img src="images/works/steamboat/DragRunner-thumb.jpg" width="200" height="200" alt="Drag Runners" /></td>
    <td width="5" rowspan="8">&nbsp;</td>
  </tr>
  <tr id="caption">
    <td>Once I settled on a basic form, I tweaked the final design in CAD in three dimensions</td>
    <td><p>A   prototype of  paper, cardboard, and a mixing<br />
    bowl identified potential  manufacturing difficulties</p></td>
    <td>The patterns were lasercut sheets of Masonite with auto body filler to smooth out the contours </td>
  </tr>
  <tr>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td><img src="images/works/steamboat/Sanding-thumb.jpg" width="200" height="200" alt="Sanding" /></td>
    <td><img src="images/works/steamboat/CompletedRingCoreBox-thumb.jpg" width="200" height="200" alt="Core Box" /></td>
    <td><img src="images/works/steamboat/Drag-thumb.jpg" width="200" height="200" alt="Drag" /></td>
  </tr>
  <tr id="caption">
    <td>I spent countless hours sanding each pattern to<br />
    get the right contour and smoothness</td>
    <td>My casting was too complex to do on-campus, so<br />
    I took my patterns to a small foundry in San Jose</td>
    <td><p>Sand was firmly packed around each pattern,<br />
which was then removed to form the mold cavity </p></td>
  </tr>
  <tr>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
    <td>&nbsp;</td>
  </tr>
  <tr>
    <td><img src="images/works/steamboat/JoeMcCord-thumb.jpg" width="200" height="200" alt="Joe McCord" /></td>
    <td><img src="images/works/steamboat/Pouring-thumb.jpg" width="200" height="200" alt="Pouring" /></td>
    <td><img src="images/works/steamboat/RawCasting-thumb.jpg" width="200" height="200" alt="Raw Casting" /></td>
  </tr>
  <tr id="caption">
    <td>It was amazing to meet Joe McCord, 85 years old, who runs the foundry with his son, almost 60</td>
    <td>After assembling the mold - cope, drag, and two cores - molten aluminum was poured in</td>
    <td><p>Finally, I removed the excess metal from the casting process and sanded (again) to a smooth finish</p></td>
